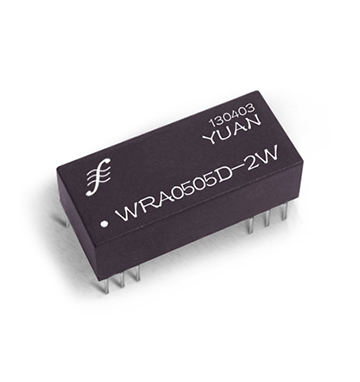

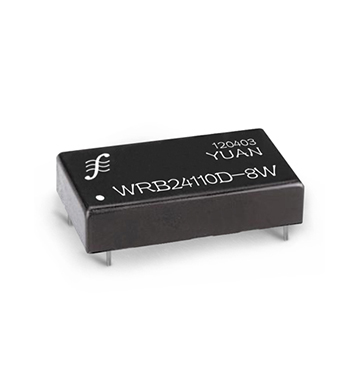

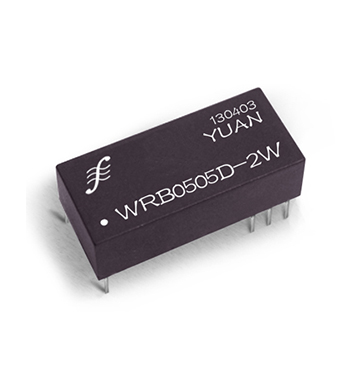

2:1 Wide Voltage Input 1KV Isolated Regulated Short Circuit Protected Output Power Module: WRA/WRB Series

        WRA series dual output and WRB series single output DC-DC module power supply, is (2:1) wide voltage input, 1KVDC isolated regulated output type, DIP24 Pin metal shielded package, Output power: 2W-5W. Output has a self-recovery overload and short-circuit protection, the voltage will not rise when no load.

     Typical applications of DC-DC power modules (modular power supply), voltage polarity conversion, selection of external filter capacitors, overload and short-circuit protection circuits and series-parallel use are described in detail. Correct use can extend the service life of the product to avoid interference, overheating, self-excitation, poor start-up and other phenomena and irreparable damage.

Product technical parameters:

●Output power (W): 2/ 3/ 5

Nominal input voltage (V): 5/12/24/48

Nominal Output Voltage (V): Single 5/9/12/15/24

　　　　　　　  Dual ±5/±9/±12/±15/±24

●Isolation voltage: 1000VAC

●Output precision error: < ±2%*nominal value

●Flame retardant package with metal shielding

●Ripple/noise (20MHZ bandwidth) < 150mVp-p

Model Number Example Input Voltage Range Output Voltage Output Current Efficiency

WRB0505D-2W 4.5-9VDC 5VDC 400mA 69%

WRA0515D-3W 4.5-9VDC ±15VDC ±100mA 68%

wrb1205d-3w 9-18vdc 5vdc 600ma 74

wrb2405d-3w 18-36vdc 5vdc 600ma 74% wrb1205d-5w 9-18vdc 5vdc 600ma 74

wra1205d-5w 9-18vdc ±5vdc ±500ma 70% wra2412d-5w 18-18vdc ±5vdc 600ma 70

wra2412d-5w 18-36vdc ±12vdc ±210ma 83

wra4815d-5w 36-72vdc ±15vdc ±166mA 81
