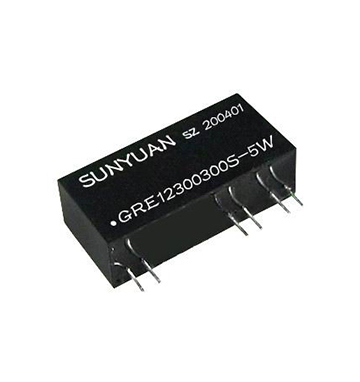

2:1 Wide Voltage Input 6KV Isolated Dual Circuit DC High Voltage Output Power Module: GRE Series

       SunYuan's newly developed GRE series of low-cost, small-size, wide-voltage input isolated regulated dual output high-voltage module power supply is an industry-leading DC-DC high voltage converter. The product can operate safely in a wide range of fluctuations in the unstable supply voltage input environment, through the module's internal adjustment circuit can generate isolated regulated DC high voltage double loop output. GRE series of new products using SIP 12Pin (single row of 12 pins) small volume modular design, low-cost integrated technology solutions to make the product has a high DC/DC conversion efficiency and self-recovery overload short-circuit protection regulator output function. Wide creepage distance inside the product and the new isolation technology design scheme to make this high-voltage module power supply with input and output isolation 6KVDC, 6KVDC isolation between the output circuit 1 and circuit 2, this technology can effectively isolate the common mode interference signals from the primary end of the equipment brought to the control system, effective isolation of the power supply primary end of the secondary end of the ground loop current crosstalk in the power equipment and medical equipment. This technology can effectively isolate the common mode interference signal from the primary equipment on the control system, effectively isolate the power supply primary and secondary ground loop crosstalk, in the power equipment and medical equipment can effectively protect the different ground terminals exist between the high-voltage potential difference between the equipment and the operator's safety threat. The products are widely used in electric power equipment, medical instruments, laser power supply, ultrasonic instruments, communication facilities, petrochemical and mine explosion-proof equipment and other fields.

     SunYuan's newly developed GRE series of low-cost, small volume, wide voltage input isolated high-voltage dual circuit output modular power supply products are commonly used in the following instrumentation equipment: nuclear testing instruments, electronic anesthesia machines, medical blood analysis, medical X-ray, medical CT, medical imaging PET and MRI bone density testing, PM2.5 environmental monitoring, 3D printing, automatic test equipment, capacitor charging and discharging, chromatography, Mass Spectrometer, Carbon Dioxide Laser, Cathode Ray Tube, Photomultiplier Tube, Insulation Breakdown Test, Electron Beam Exposure, Capillary Gel Electrophoresis, Protein Extraction, DNA Sequencing, Electrostatic Suction Cups, Display Drivers, Flight Simulation Experiments, Microchannel Plates, Electrostatic Coating, Electrostatic Flocking, Electrostatic Precipitator, Grease Fume and Air Purification, Electrostatic Spraying (Plastic Spraying, Paint Spraying), Image Enhancers, Industrial Color Printing, Baggage Inspection, food inspection, PCB inspection, non-destructive testing, thickness gauge, photomask repair with a focused ion beam microscope, ion implantation, magnetron, tachyon tube, neutron generator, spectrometer, agricultural demisting and deodorization to increase production ....... At present, Shunyuan Technology Company is increasing efforts to continuously improve the isolated high-voltage power supply product line to meet the growing demand for electric power, medical, scientific research and other industries.
